Anthem P2 Power Amplifier

General Features:

• Versatile Inputs: Equipped with 2 single-ended (RCA) and 2 balanced (XLR) inputs, plus 1 relay trigger input (3.5 mm mono jack) for diverse connectivity options.

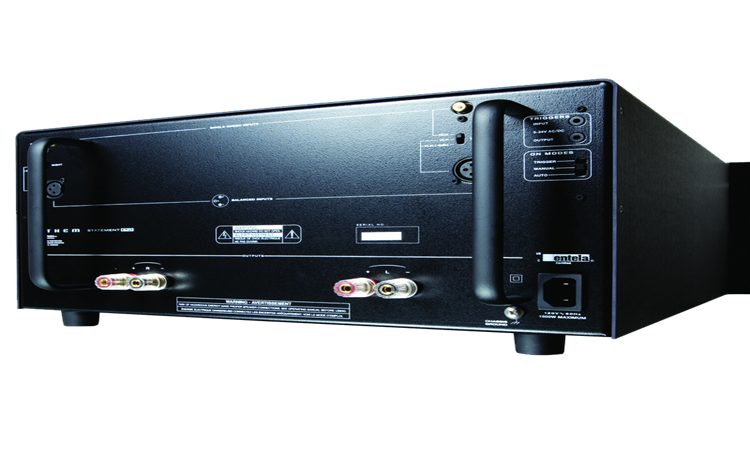

• Output Connections: Includes 2 pairs of high-quality speaker binding posts and 1 relay trigger output (3.5 mm mono jack) for secure, reliable connections.

• Exceptional Distortion Performance: Achieves ultra-low Total Harmonic Distortion plus Noise (THD+N) of 0.0007% at 1 kHz and 0.008% at 20 kHz, ensuring clean and precise audio.

• Minimal Intermodulation Distortion (IMD): Delivers an extremely low IMD of 0.00019% (CCIF, 325W into 8 Ω), minimizing unwanted frequency interactions for clear, accurate sound.

• Wide Power Bandwidth: Operates efficiently across a broad frequency range from 10 Hz to 150 kHz (+0 -3 dB, 325W into 8 Ω), offering robust performance across all audio frequencies.

• Accurate Frequency Response: Provides a linear frequency response of 20 Hz to 20 kHz (+0 -0.15 dB) and extended high-frequency response up to 100 kHz (+0 -2 dB) for detailed sound reproduction.

• Optimized Input Sensitivity: Features an input sensitivity of 1 Vrms in for 28.3 Vrms out (100W into 8 Ω) on both RCA and XLR inputs, ensuring efficient power transfer.

• High Input Impedance: Offers input impedance of 18 kΩ (RCA) and 22 kΩ (XLR) for compatibility with a wide range of audio sources.

• Exceptional Damping Factor: Boasts a damping factor of >600 at 20 Hz and 400 at 1 kHz (ref. 8 Ω), providing tight control over speaker movement for accurate bass response.

• High Signal-to-Noise Ratio: Features a signal-to-noise ratio of 125 dB, A-weighted (ref. 325W), reducing background noise for clear, undistorted audio.

• Low Crosstalk: Ensures excellent channel separation with crosstalk of -140 dB at 20 Hz and -80 dB at 20 kHz, enhancing the soundstage and stereo imaging.

• Consistent Voltage Gain: Delivers a voltage gain of 29 dB, maintaining consistent output levels for various inputs.

• Fast Slew Rate: Provides a slew rate of 40 V/µs, ensuring quick and accurate response to rapid signal changes for dynamic audio performance.

Controls and Connectivity:

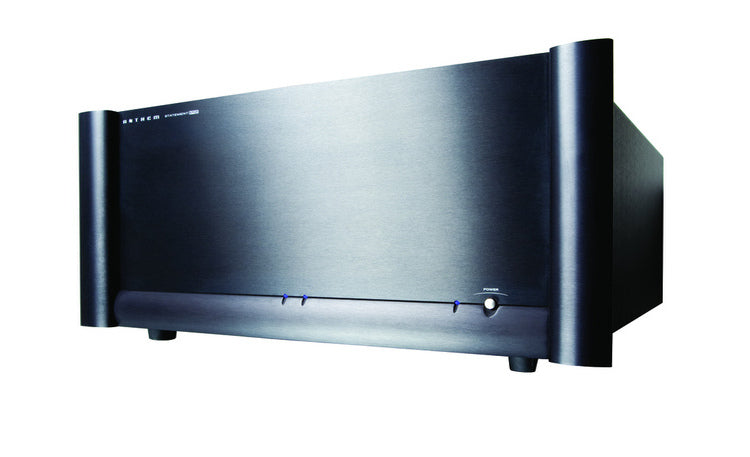

• Front Panel Power Switch: Simple on/off power control for ease of use.

• Rear Panel Switches: Includes switches for on/off modes (Trigger, Manual, Auto) and input selection (RCA, XLR, XLR -6dB) for flexible setup and operation.

Power Requirements:

• Supply Voltage: Operates on a voltage range of 105 to 130 V, 60 Hz, accommodating standard electrical systems.

• Power Consumption: Consumes up to 1800 watts, ensuring powerful performance while managing energy use.
