Ci130.2CS

KEF Ci130.2CS

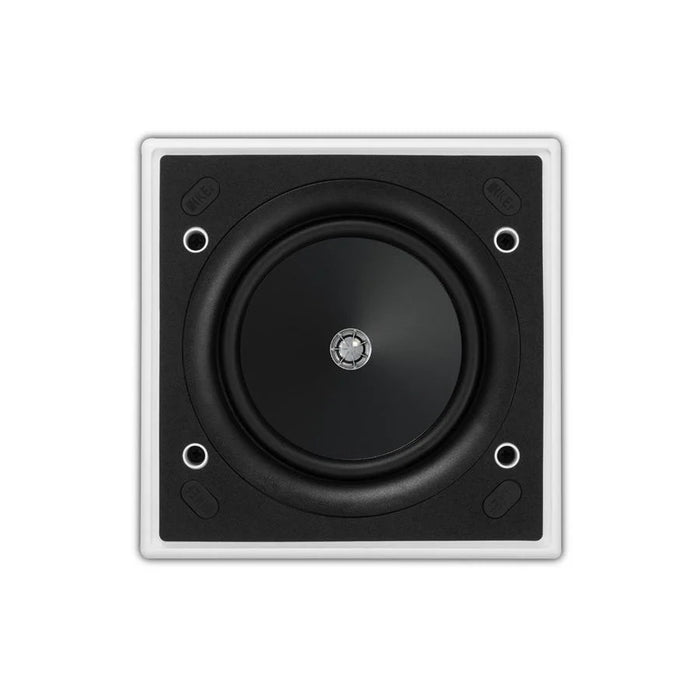

The Ci130.2CS by KEF offers a sophisticated in-ceiling speaker solution that integrates KEF’s renowned Uni-Q driver array for seamless audio performance. This innovative technology places the tweeter in the center of the bass/midrange cone, ensuring that both drivers act as a single point source. This unique setup allows for wide, even sound dispersion, providing exceptional audio quality throughout the room, no matter where you sit.

Nominal Impedance:
8 Ohms, compatible with a wide range of amplifiers for consistent and reliable sound output.

Sensitivity:
87dB (2.83V/lm), delivering high sound levels with minimal power input.

Frequency Response:
With a range of 52Hz - 20kHz (+/-6dB) open-backed, the Ci130.2CS offers a balanced performance across both low and high frequencies.

Crossover Frequency:
2.5kHz, ensuring smooth transitions between the low and high frequencies for a cohesive audio experience.

Drive Units:

• Low Frequency (LF): 130mm (5.25 in.) Uni-Q driver for detailed and deep bass.
• High Frequency (HF): 16mm (0.6 in.) driver for crisp and clear high tones.

Recommended Amplifier Power:
10-80W, providing flexibility in amplifier pairing while maintaining optimal performance.

Product External Dimensions (H x W x D):
184 x 184 x 81 mm (7.24 x 7.24 x 3.19 in.), allowing for discreet installation in various spaces.

Cut-Out Dimensions (H x W):
158 x 158 mm (6.22 x 6.22 in.), ensuring easy and accurate installation.

Mounting Thickness:

• Maximum: 24mm (0.95 in.)
• Minimum: 6mm (0.24 in.), adaptable to different ceiling thicknesses for secure mounting.

Mounting Depth From Surface:
77.1mm (3.03 in.), providing a flush finish for seamless integration into your ceiling.

Optional Accessories:

• Rough-In Frame: RIF130S for pre-construction installation.
• Rear Enclosure: RNC130S for enhanced bass performance and sound isolation.

Net Weight:
1.2kg (2.7 lbs), lightweight and easy to handle for installation.

Unit Measurement:
Sold individually, allowing for flexible system configuration.
