Ci200QS
Ci200QS
KEF Ci200QS

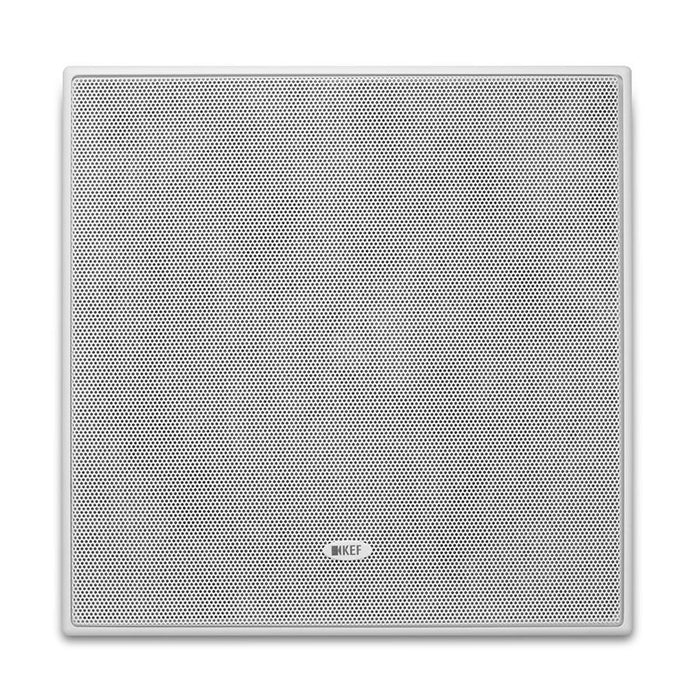

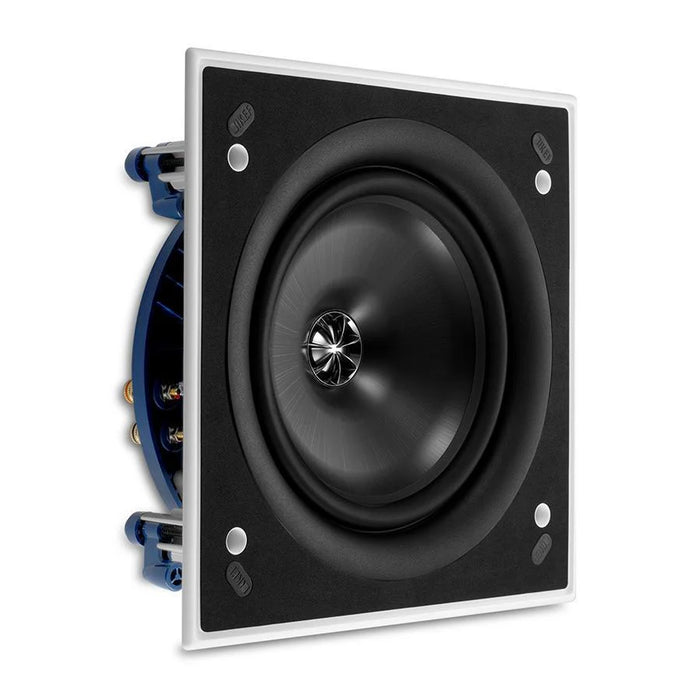

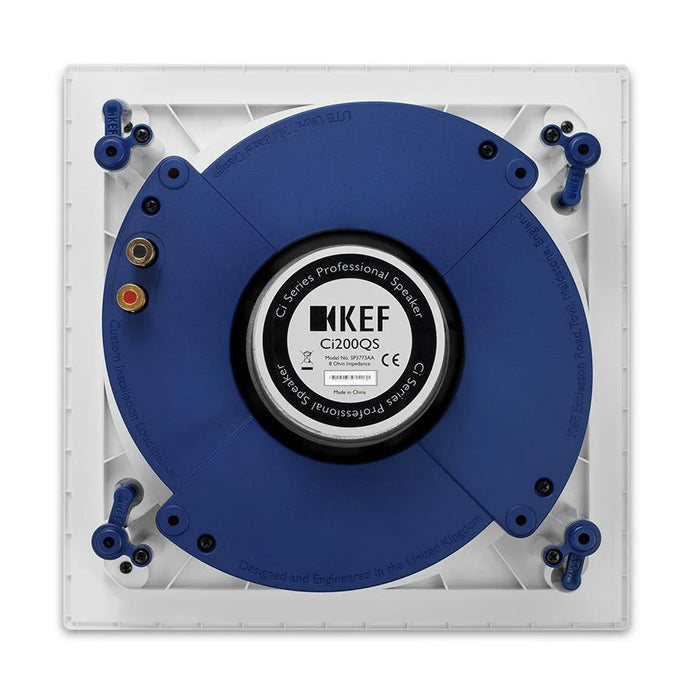

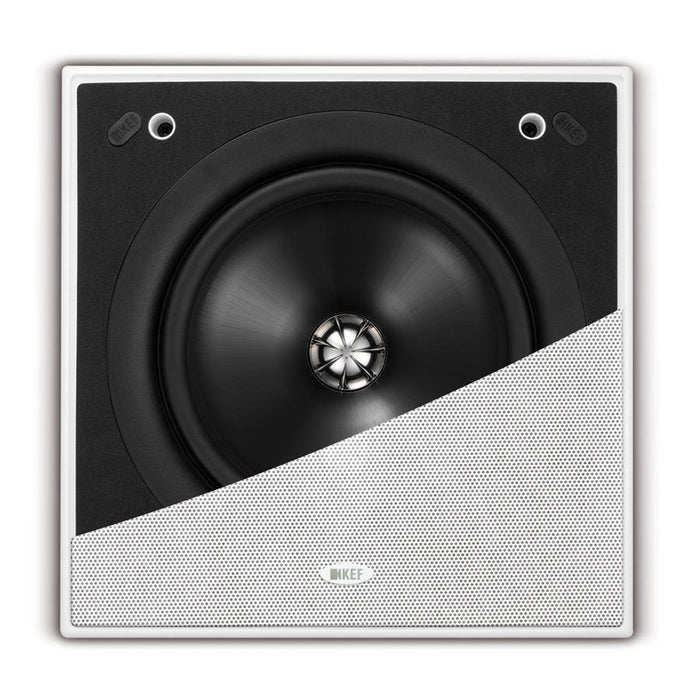

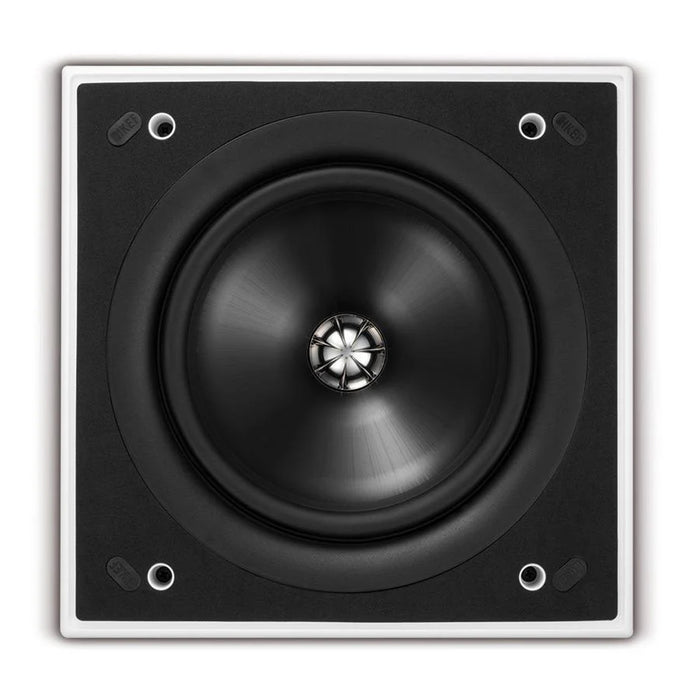

The Ci200QS by KEF is a high-performance speaker, featuring the advanced Uni-Q driver array that delivers a wide and even sound dispersion. This technology places the tweeter at the acoustic center of the midrange cone, allowing both drivers to act as a single point source for seamless audio quality throughout the room.
Sophisticated Uni-Q Driver Array:
The 200mm (8 in.) bass/midrange driver and 25mm (1 in.) Uni-Q tweeter are designed to work in perfect harmony, ensuring detailed highs and deep lows, creating an immersive soundstage no matter where you sit.
Nominal Impedance:
With an impedance of 8 Ohms, the Ci200QS ensures compatibility with most amplifiers, providing flexibility for various audio setups.
Sensitivity:
At 90dB (2.83V/1m), this speaker is capable of delivering powerful sound output with minimal amplifier power, making it efficient and effective for both home and commercial audio systems.
Crossover Frequencies:
A well-engineered crossover at 2.5kHz ensures a smooth transition between low and high frequencies, delivering a cohesive and balanced audio performance.
Frequency Response:
With a frequency response of 45Hz - 20kHz (±6dB) open-backed, the Ci200QS delivers impressive clarity across the entire frequency range, from rich bass tones to crisp treble details.
Recommended Amplifier Power:
It works seamlessly with amplifiers ranging from 10 to 150W, providing flexibility for different room sizes and listening preferences.
Product External Dimensions (H x W x D):
The speaker's compact design, measuring 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.), makes it suitable for a variety of installation environments, offering both aesthetic appeal and powerful sound.
Cut-Out Dimensions (H x W):
The required cut-out dimensions are 238 x 238 mm (9.37 x 9.37 in.), allowing for easy installation into most ceiling types.
Mounting Thickness:
- Maximum: 38mm (1.5 in.)
- Minimum: 7mm (0.28 in.), accommodating various ceiling thicknesses for versatile installation.
Mounting Depth From Surface:
The mounting depth is 99.8mm (3.93in.), making it suitable for spaces with moderate depth, while still ensuring excellent sound performance.
Optional Accessories:
- Rough-In Frame: RIF200S for pre-construction installations.
- Rear Enclosure: RNC200S for enhanced bass response and acoustic isolation.
Net Weight:
Weighing 2.4kg (5.3 lbs) per unit, the Ci200QS is easy to handle and install while maintaining a robust build for lasting durability.
Unit Measurement:
Each unit is sold separately, offering flexibility in system design and expansion.
