MartinLogan Abyss 10

Abyss 10 by MartinLogan

Overview:

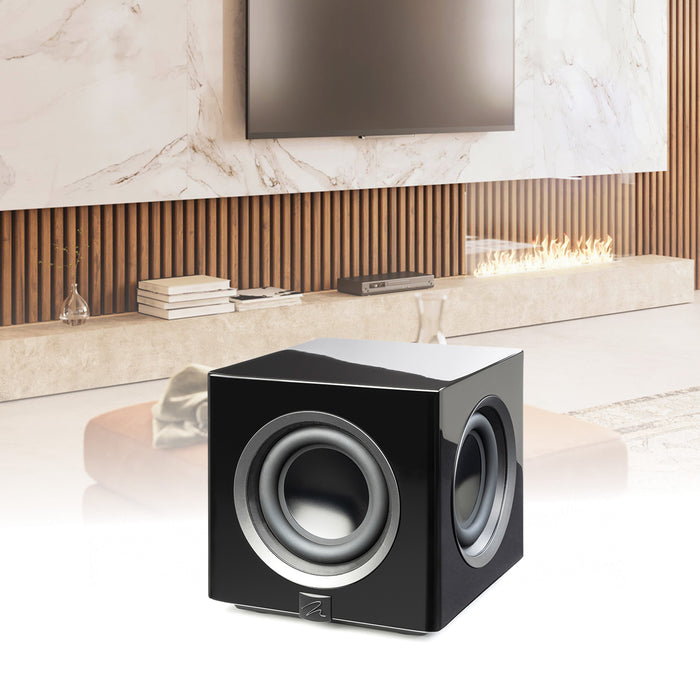

The Abyss 10 by MartinLogan is a compact yet powerful subwoofer that defies its size with deep, impactful bass. Its innovative Hybrid Woofer System pairs a 10” active aluminum woofer with dual 10” aluminum passive radiators to deliver the enhanced output of a ported subwoofer while maintaining the tight bass and compact size of a sealed system. The result is deep, clean bass with minimal distortion and no compromises in performance.

Purpose:
Ideal for audiophiles and home theater enthusiasts seeking high-performance bass in a compact design, the Abyss 10 offers powerful and musical bass at all volume levels. Its versatile connection options and advanced amplification ensure seamless integration into various audio systems.

Design:

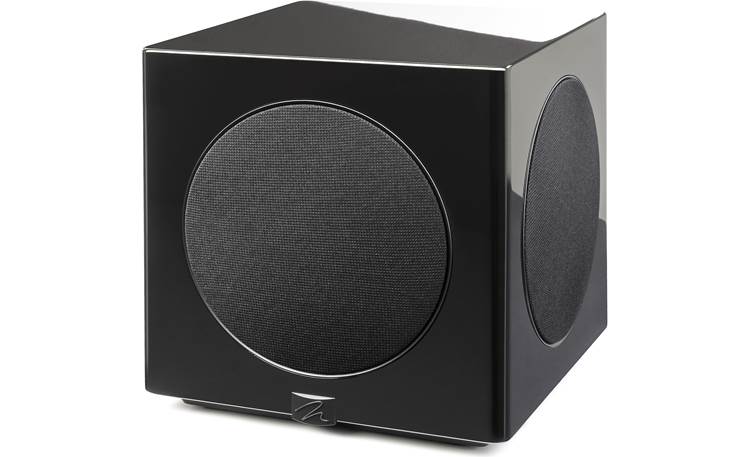

The Abyss 10 features a precision-crafted, sealed MDF enclosure, reinforced with a 1-inch thick MDF structure and woofer baffles for added durability. The hybrid woofer design utilizes high-excursion anodized aluminum cones for both the active woofer and passive radiators, ensuring superior performance with excellent heat dissipation properties. A high-gloss black finish complements its modern design.

Key Features:

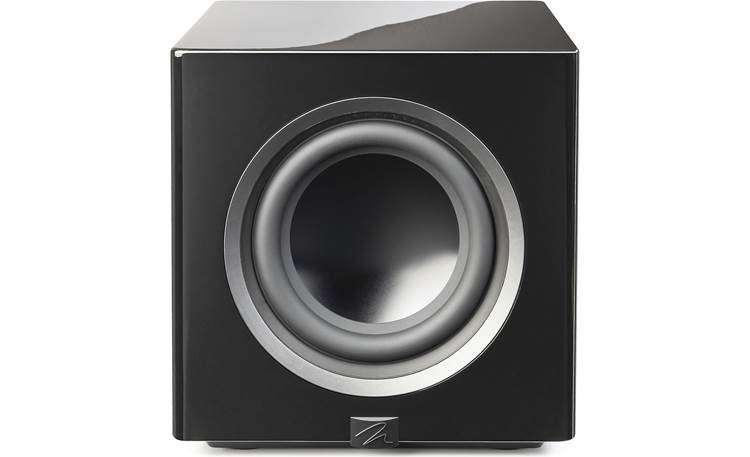

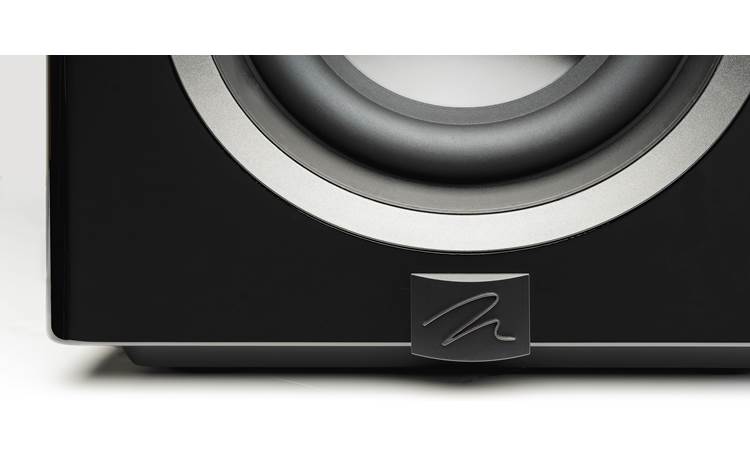

• Woofer System: Triple 10” Hybrid Woofer System with one high-excursion, anodized-aluminum active cone and two anodized-aluminum passive radiators for tight, deep bass.
• Amplification: Magnitude MT-1.6kW Amplifier with 1600W peak (800W RMS) for powerful, low-distortion bass output.
• Digital Signal Processing: Ultra High-Resolution 500MHz Vojtko DSP engine with 64-bit processing for precise bass control and minimal distortion.
• Cabinet: Sealed MDF enclosure with reinforced woofer baffles and center brace for structural integrity and enhanced performance.
• Finish Options: Gloss Black finish for a sleek, modern look.

Performance:

• Frequency Response: 22–200 Hz ±3 dB (Anechoic via LFE input), delivering deep, precise bass across a wide range of frequencies.
• Power Handling: 800W RMS (1600W peak), ensuring powerful bass that can fill large rooms without distortion.
• Bass Control: Low-pass filter frequency (35–120Hz) and phase control (0–180°) for customized bass integration with your system.

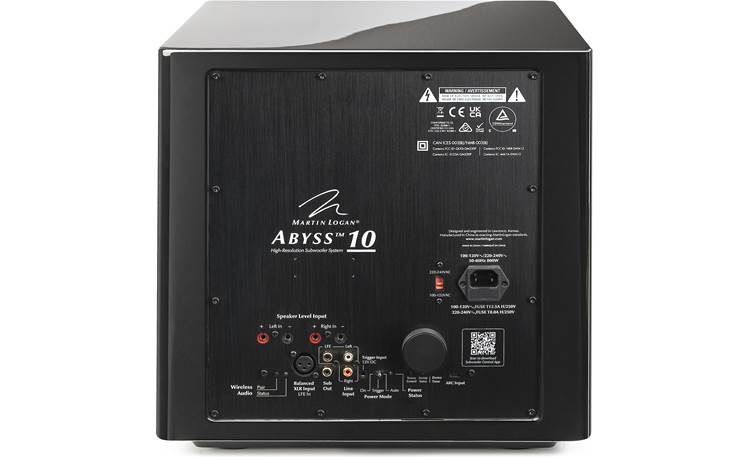

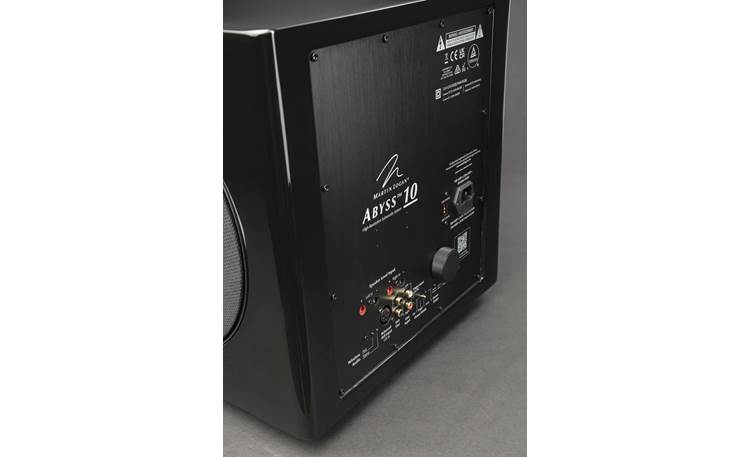

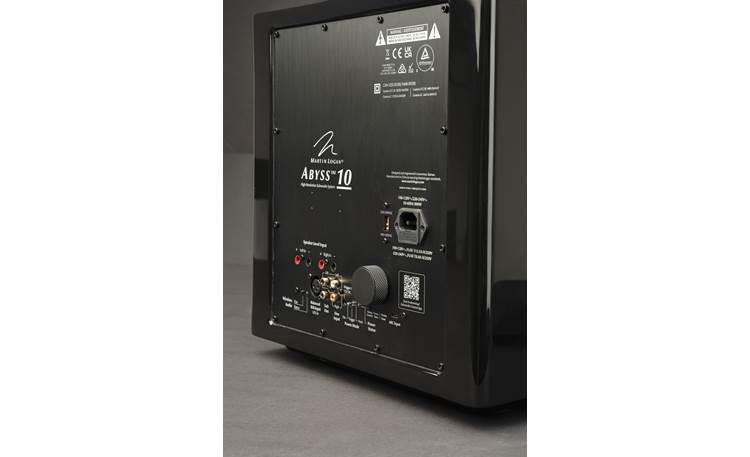

• Wireless and Wired Flexibility: Integrated wireless receiver (transmitter included) and a variety of wired inputs including RCA, XLR, and speaker level for easy system integration.

SPL and Amplification:

• Amplifier Power: 800W RMS with 1600W peak power output, ensuring high output at low distortion for seamless musicality and impact.

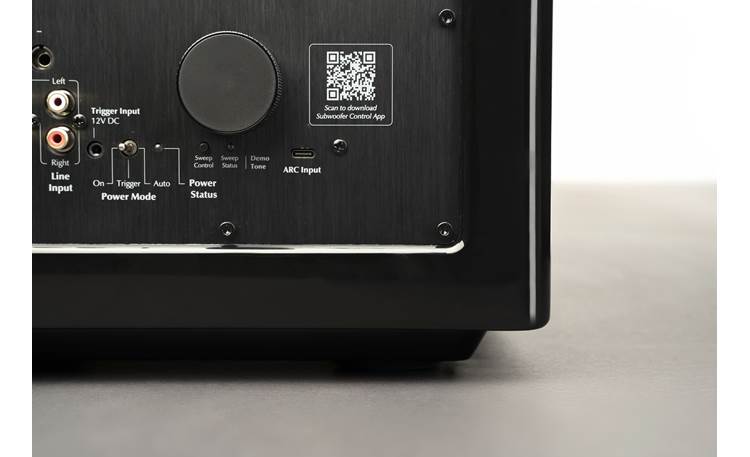

• Room Correction: Anthem Room Correction (ARC Genesis) for optimized bass performance based on your room's acoustics.

Dimensions and Installation:

• Dimensions: 15.4" x 15" x 15" (39.1 cm x 38 cm x 38 cm), compact yet powerful enough to fit into a variety of spaces.
• Weight: 55.6 lbs (25.2 kg), providing stability and performance without compromising on design.
• Power Draw: Maximum 800W, with standby modes consuming minimal power (0.5W with wireless disabled, <2W with wireless enabled).

Finishes:
The Abyss 10 comes with a sleek gloss black finish, adding elegance to any home theater or audio setup.
