MartinLogan Abyss 8
MartinLogan Abyss 8

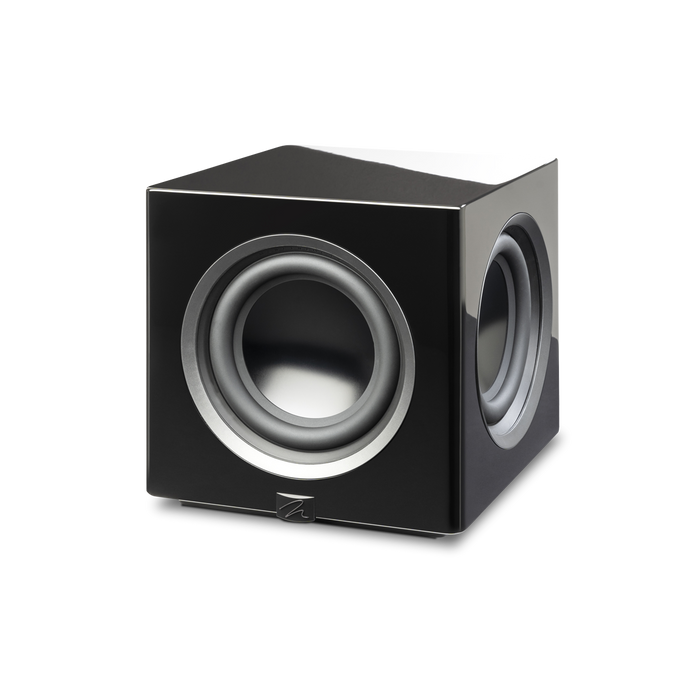

Abyss 8 by MartinLogan
Overview:
The Abyss 8 subwoofer from MartinLogan is a compact powerhouse designed to deliver high-impact bass with exceptional accuracy. It incorporates MartinLogan’s Hybrid Woofer System, featuring a high-excursion anodized aluminum cone and dual anodized aluminum passive radiators, ensuring deep, clean bass despite its small size. Engineered to complement any speaker system, the Abyss 8 excels in both musicality and theatricality, making it an ideal choice for audiophiles and home theater enthusiasts alike.
Purpose:
The Abyss 8 is designed to provide seamless integration into home audio systems, offering dynamic output and precise bass in a compact form. It’s perfect for environments where space is at a premium but high-performance bass is still a necessity.
Design:
The Abyss 8 features a precision-crafted sealed MDF enclosure, reinforced with a robust 1-inch thick MDF structure for structural integrity. This ensures tight, controlled bass performance without distortion. The subwoofer’s sleek, modern finish is available in Gloss Black or Satin White, making it a decor-friendly choice for any living space.
Key Features:
- Woofer System: Triple 8” Hybrid Woofer System, with one high-excursion anodized-aluminum active cone and dual anodized aluminum passive radiators for deep, clean bass.
- Amplification: Magnitude MT-1kW Amplifier with 1000W peak (500W RMS) for powerful, distortion-free bass.
- Digital Signal Processing: Ultra High-Resolution 500MHz Vojtko DSP engine with 64-bit processing for superior control and minimal distortion.
- Cabinet: Sealed MDF enclosure with a 1-inch thick structure, reinforced woofer baffles, and center brace for optimal sound quality.
- Finish Options: Available in both Gloss Black and Satin White finishes for a sophisticated look.
Performance:
- Frequency Response: 23–200 Hz ±3 dB (Anechoic via LFE input), delivering rich bass across a wide frequency range.
- Power Handling: 500W RMS (1000W peak) for high-output performance with clean bass response.
- Bass Control: Low-pass filter frequency (35–120Hz) and phase control (0–180°) to tailor bass output to your system and room acoustics.

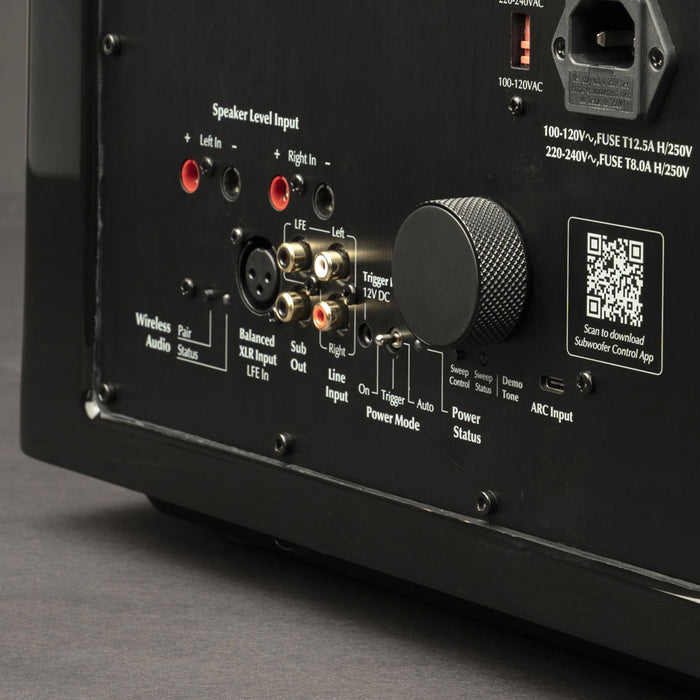

- Wireless and Wired Flexibility: Wireless receiver and transmitter included for a clutter-free setup, plus RCA, XLR, and speaker-level inputs for various installation options.
SPL and Amplification:
- Amplifier Power: 500W RMS (1000W peak) for robust bass output with high efficiency and low distortion.
- Room Correction: Anthem Room Correction (ARC Genesis) for optimal bass performance based on room acoustics.
Dimensions and Installation:
- Dimensions: 13.5" x 13.2" x 13.2" (34.3 cm x 33.5 cm x 33.5 cm), making it compact enough for tight spaces while still delivering powerful bass.
- Weight: 46.7 lbs (21.2 kg) for stable, low-resonance performance.
- Power Draw: Maximum 500W, with ultra-low power consumption in standby mode (0.5W with wireless disabled, <2W with wireless enabled).

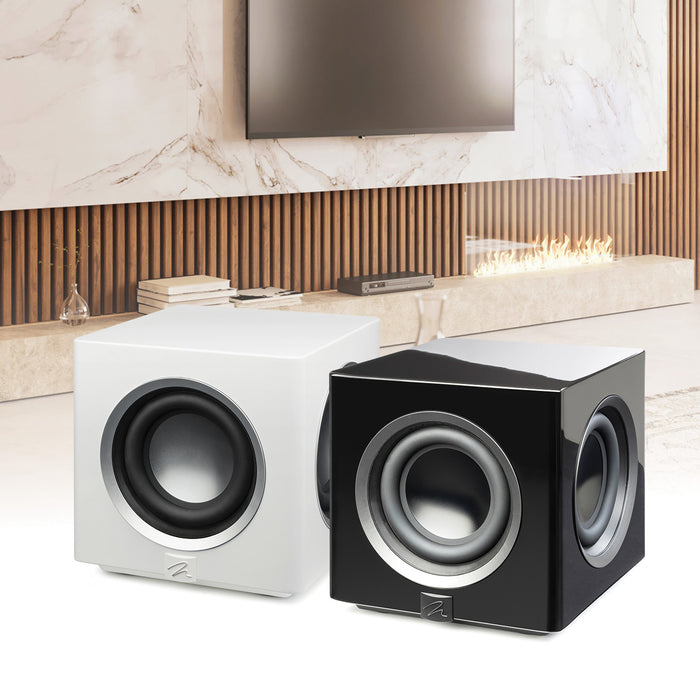

Finishes:
The Abyss 8 is available in Gloss Black or Satin White finishes, ensuring it fits seamlessly with modern home theater or living room setups.
