MartinLogan Dynamo 12

Dynamo 12 by MartinLogan

Overview:
The Dynamo 12 by MartinLogan is a high-performance subwoofer that combines audiophile-grade musicality with powerful, dynamic output in a compact, décor-friendly design. Engineered to complement any speaker system, the Dynamo 12 integrates seamlessly with MartinLogan’s renowned thin-film loudspeakers, ensuring accurate, deep bass and an immersive home theater experience. With advanced technology like the ultra-high-resolution Vojtko DSP engine, the Dynamo 12 offers precision control over every aspect of its performance, delivering unparalleled sound quality in an elegant package.

Purpose:
The Dynamo 12 is designed for audiophiles and home theater enthusiasts seeking a powerful, accurate subwoofer that blends effortlessly into their living spaces. Whether you’re enjoying music or an action-packed movie, this subwoofer provides the deep, impactful bass needed for a full-range listening experience.

Design:

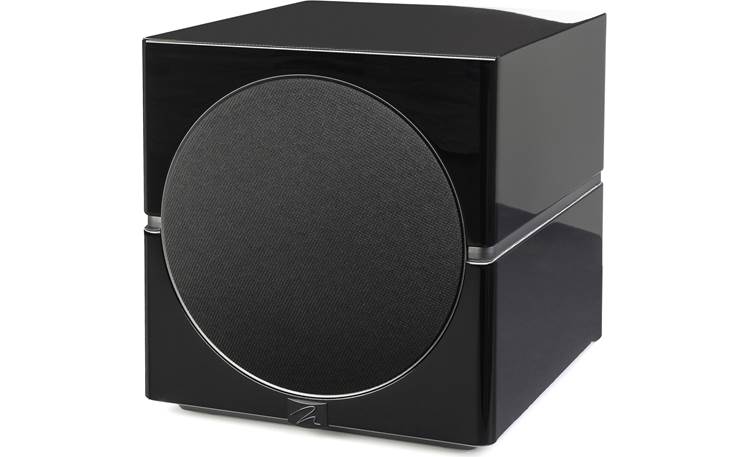

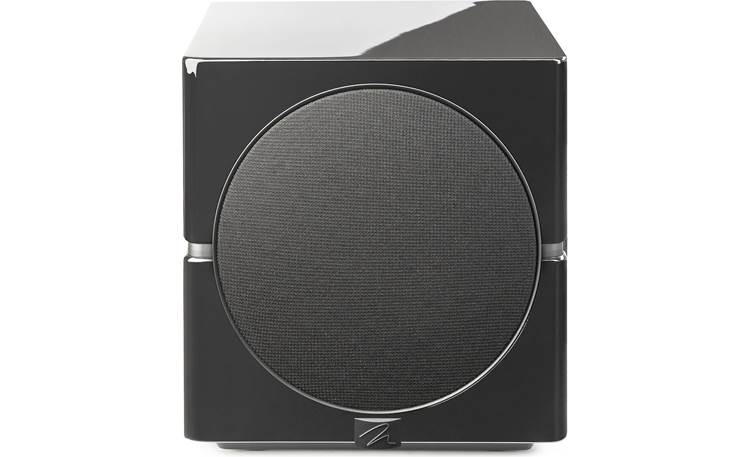

The Dynamo 12 features a precision-crafted sealed MDF enclosure with a robust 1-inch thick MDF woofer baffle, ensuring minimal resonance and distortion. Its 12-inch anodized-aluminum cone driver provides deep, high-excursion bass, while the sleek, gloss black finish ensures the subwoofer complements any décor. Integrated anti-vibration feet and carpet spikes offer stability and isolation for optimal performance.

Key Features:

• Digital Signal Processing: Ultra high-resolution 500MHz Vojtko DSP engine with 64-bit processing ensures maximum output and fidelity with transparent audio performance.

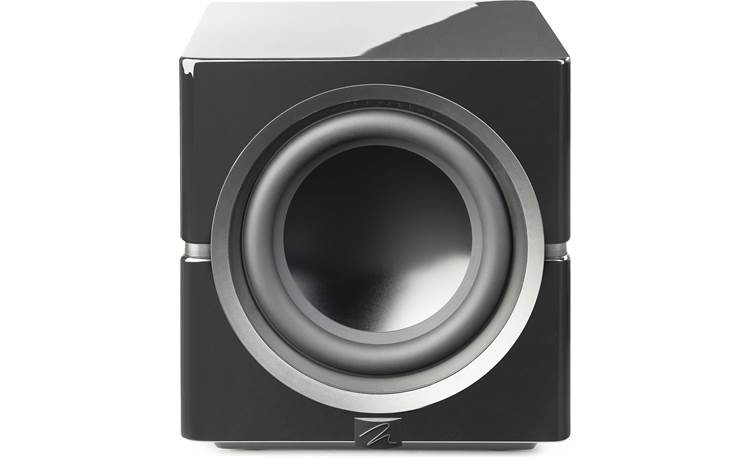

• Low Frequency Transducer: 12" high-excursion anodized-aluminum cone for deep, controlled bass response.
• Powerful Amplifier: Magnitude® MT-1.6kW Amplifier with 1,600W peak power (800W continuous) for superior dynamic range.
• Wireless Capability: Built-in wireless audio pairing and included wireless transmitter for seamless, cable-free integration.

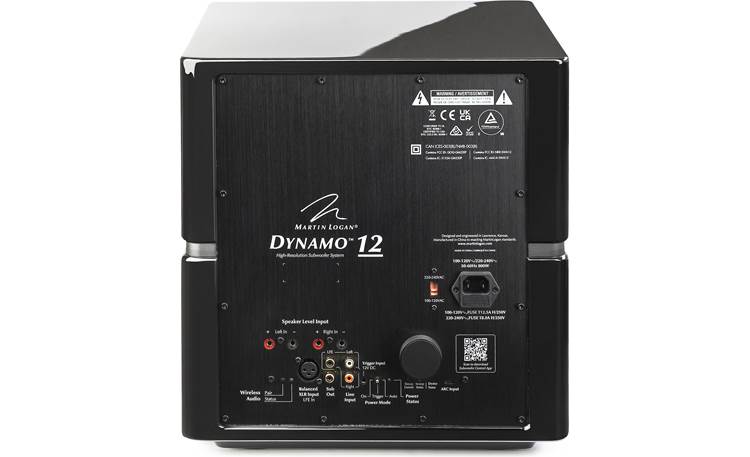

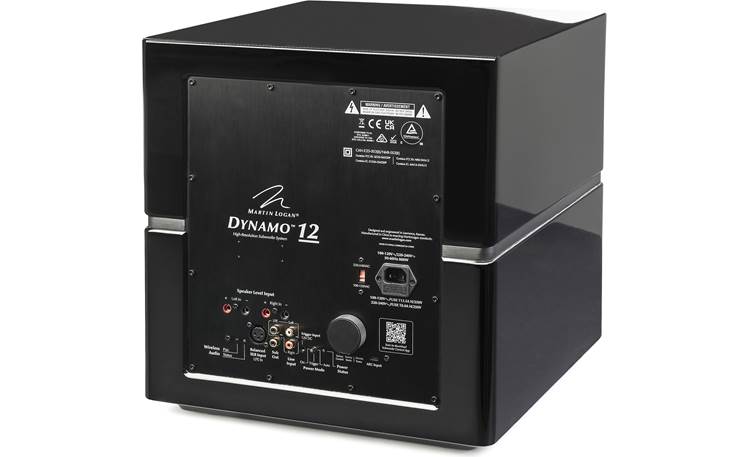

• Wired Installation Flexibility: RCA, XLR, and speaker-level inputs with simultaneous connection support for versatile system integration.
• Customizable Controls: Adjustable settings for level, low-pass filter, phase, and preset listening modes (Movie, Music, Night) for tailored performance.

Performance:

• Frequency Response: 22–200 Hz ±3 dB (anechoic via LFE input), offering deep bass extension and accuracy.
• Phase Adjustment: 0–180° (1° increments) for precise phase alignment with other speakers.
• Preset Listening Modes: Tailored modes for different listening experiences, including Movie, Music, and Night modes, plus advanced features like Anthem Room Correction (ARC®).

SPL and Amplification:

• Amplifier Power: Magnitude® MT-1.6kW amplifier provides 1,600W peak power (800W continuous), delivering clean, powerful bass.
• Level Control: Interactive LED backlit knob for easy adjustment and precise volume control.

Dimensions and Installation:

• Dimensions (H x W x D): 16-3/4" x 15-3/4" x 15-3/4" (42.4 cm x 39.9 cm x 39.9 cm), compact enough to fit in tight spaces while providing powerful bass output.
• Weight: 61.5 lbs (27.9 kg), sturdy and solid for optimal sound performance.

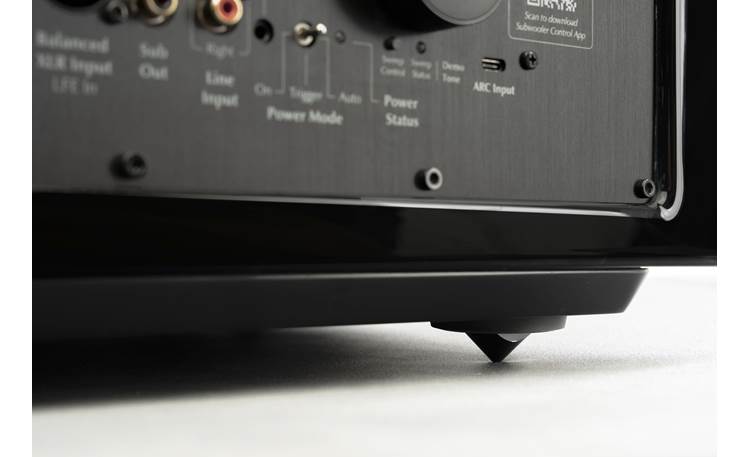

• Feet: Integrated anti-vibration feet with included carpet spikes for stable and secure placement.

Finishes:

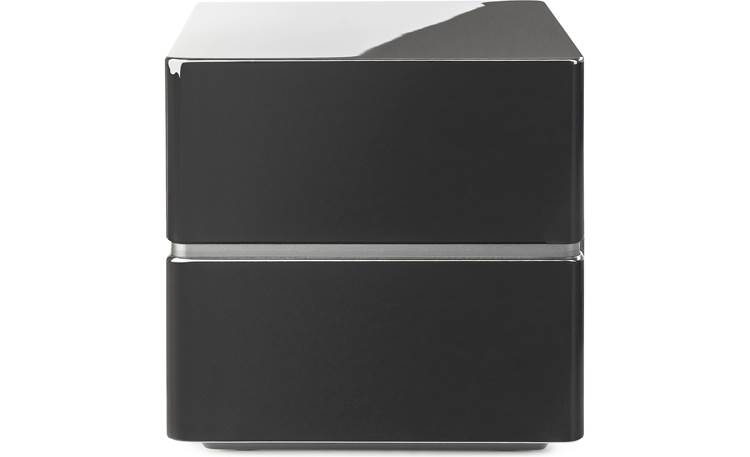

The Dynamo 12 is finished in a sleek gloss black, ensuring it fits seamlessly into any room’s décor while providing high-performance bass.
