Dynamo Foundation 10 by MartinLogan
Overview:
The Dynamo Foundation 10 by MartinLogan is designed for audiophiles seeking a compact yet powerful subwoofer that delivers dynamic bass and enhances the overall listening experience. Featuring a custom-designed 10” Ultra-Rigid Polypropylene (URP) woofer and a high-performance Magnitude MT-400 amplifier, it provides deep, impactful sound with low distortion and high output. Its modern aesthetics and innovative features make it a perfect fit for any home audio system.
Purpose:
Ideal for music and home theater setups, the Dynamo Foundation 10 offers precision and power in a compact design. Whether you’re enjoying immersive movie soundtracks or deep musical notes, this subwoofer delivers an exceptional bass experience with ease.
Design:

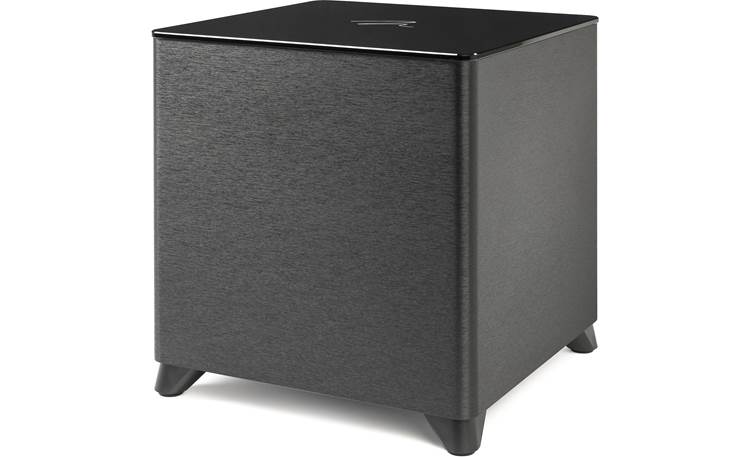

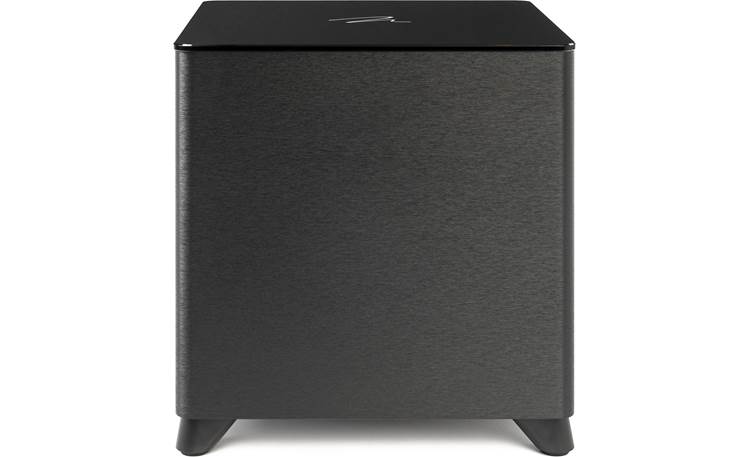

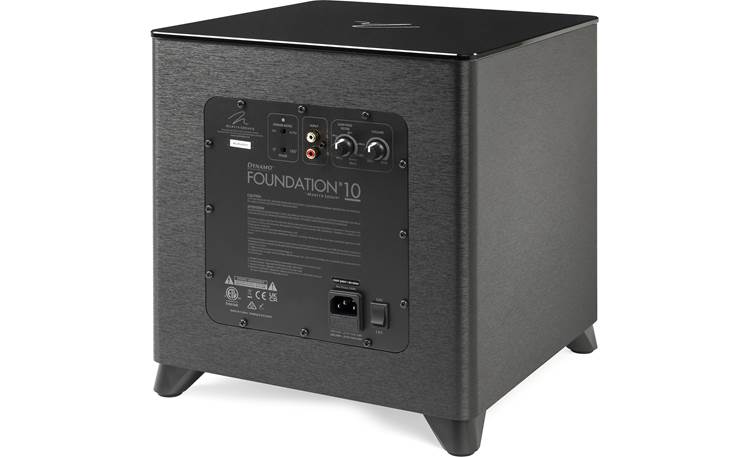

The sealed MDF cabinet with reinforced woofer baffle ensures minimal distortion and exceptional durability. The down-firing design and grille-less appearance contribute to a clean, modern aesthetic that seamlessly blends into various decors. The brushed black vinyl finish with a high-gloss top adds a touch of sophistication.
Key Features:
- Digital Signal Processing: High-resolution 200MHz DSP engine with 56-bit processing ensures distortion-free audio, maximizing the subwoofer's capabilities.

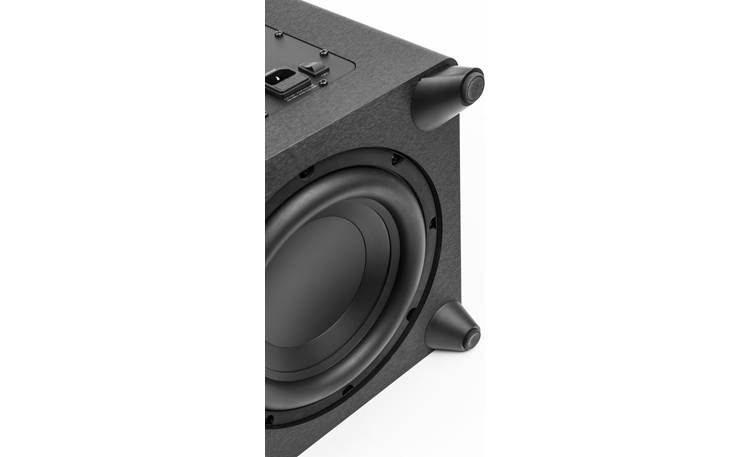

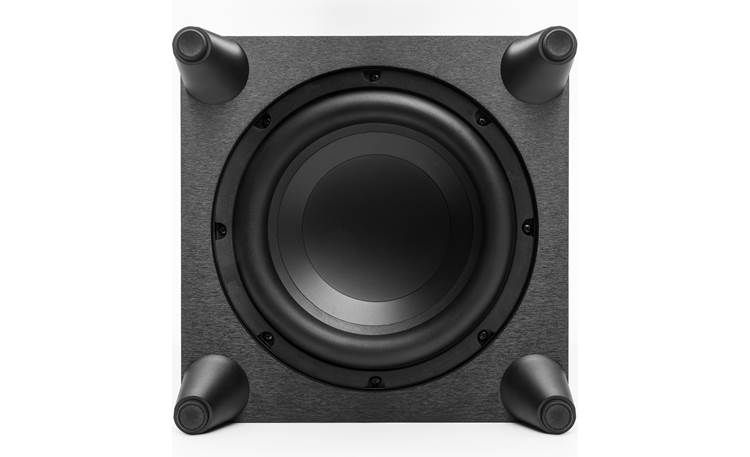

- Low Frequency Transducer: 10” high-excursion Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket provides precise, controlled bass output.
- Powerful Amplifier: Magnitude® MT-400 amplifier delivers 400W peak (200W continuous) for deep, impactful bass.
- Wireless Connectivity: The optional WSK-1 Wireless Subwoofer Kit (sold separately) allows wireless connection to your system, reducing cable clutter and enabling optimal subwoofer placement.
Performance:
- Frequency Response: 25–200 Hz ±3 dB (anechoic via LFE input), ensuring deep bass frequencies and smooth transitions for various content types.
- Phase Adjustment: 0° or 180° phase options for accurate integration with other speakers.
- Low-Pass Filter: Adjustable from 40Hz to Bypass, offering flexibility to customize bass output.

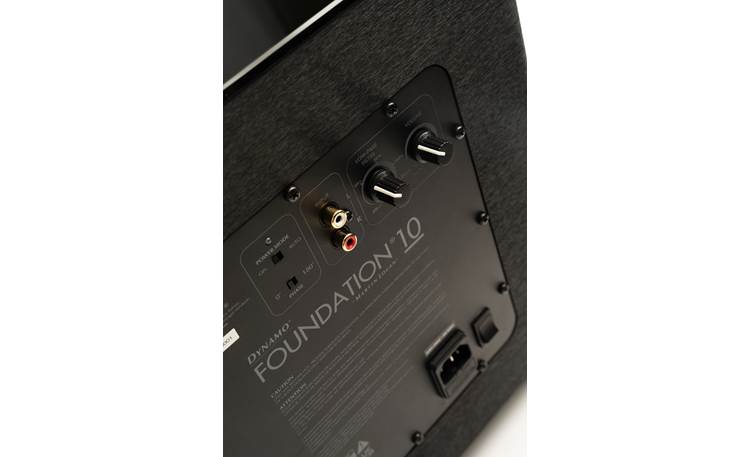

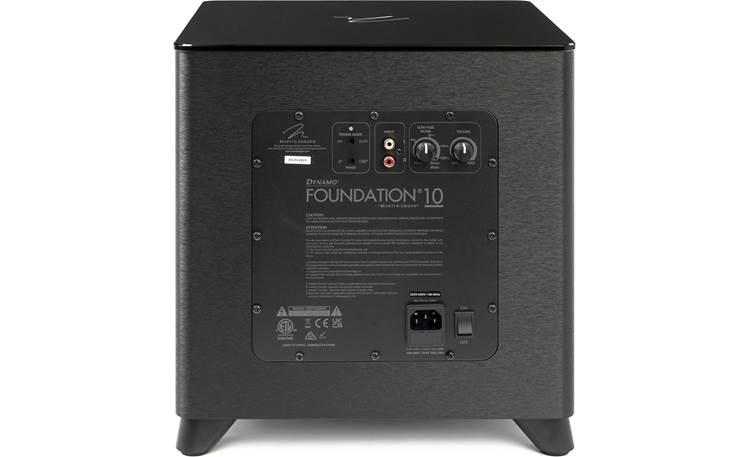

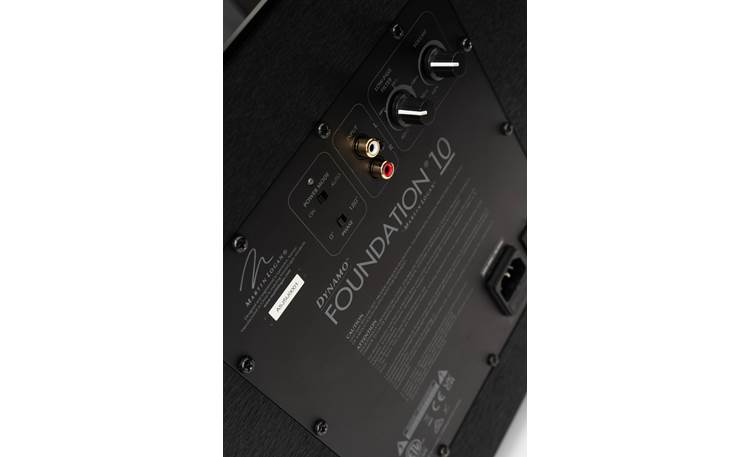

Amplification and Controls:
- Amplifier Power: Magnitude® MT-400 amplifier with 400W peak and 200W RMS for clean, precise bass.
- Level Control: Adjustable from Min–Max for personalized bass intensity.
Dimensions and Installation:
- Dimensions (H x W x D): 13" x 12-3/4" x 12-3/4" (33 cm x 31.3 cm x 31.3 cm), compact enough for versatile placement without sacrificing bass power.
- Weight: 23.8 lbs (10.8 kg), providing a stable foundation while remaining manageable for placement and integration.
- Feet: Non-slip feet to ensure secure positioning and reduce vibrations.

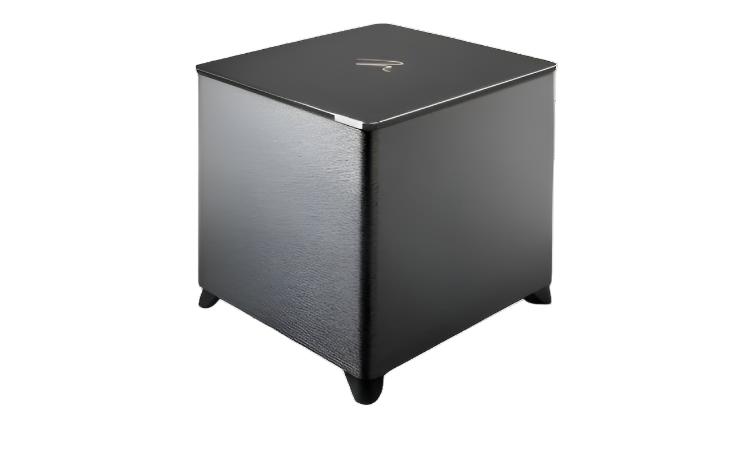

Finish:
The Dynamo Foundation 10 features a brushed black vinyl finish with a high-gloss top, creating an elegant, modern look that complements any room's aesthetic.
Energy Efficiency and Power:
- Power Draw: Max: 250W, Standby: 0.5W for efficient power consumption.
Wireless Capability:
- WSK-1 Compatibility: For wireless subwoofer connection, the optional WSK-1 Wireless Subwoofer Kit is sold separately, providing a clutter-free setup and flexibility in placement.
