Paradigm XR 13

XR 13 by Paradigm

Overview:
The XR 13 by Paradigm is an ultra-high-performance sealed subwoofer that pushes the boundaries of what’s possible in compact subwoofer design. Equipped with advanced technology, including a 13” ultra-high excursion driver, Trilinear Suspension System, and Active Ridge Technology (ART™), the XR 13 delivers incredibly deep, precise bass that enhances any home theater or audio system. Engineered for audiophiles and home theater enthusiasts, this subwoofer integrates seamlessly with the Paradigm Founder series, offering both exceptional sound and striking aesthetics.

Purpose:
The XR 13 is designed for those who demand deep, room-shaking bass without compromising on size or style. Ideal for both music lovers and home theater enthusiasts, it’s perfect for small to medium-sized rooms where high-performance, compact subwoofers are essential. The XR 13 fits effortlessly into any system, providing powerful low-frequency extension and clarity while blending beautifully with your home decor.

Design:
The XR 13 features a sealed enclosure with Cascade-Fusion™ Bracing and Paradigm’s exclusive Advanced Shock-Mount™ technology, ensuring maximum rigidity and acoustic precision. The subwoofer's faceted cabinet design not only delivers a visually stunning profile but also contributes to structural strength, effectively housing the 13” carbon-X unibody bass driver. This geometry ensures enhanced rigidity, preventing unwanted resonance and delivering a clear, accurate bass performance. The premium-grade finishes, including Satin Walnut, Black Walnut, Midnight Cherry, and Piano Black, offer a luxurious look to complement any interior.

Key Features:

• Driver Technology: 13” (330 mm) ultra-high-excursion carbon-X unibody bass driver with Trilinear Suspension System and Active Ridge Technology (ART™) for superior low-frequency performance.
• Cabinet Design: Cascade-Fusion™ bracing for increased rigidity, reduced standing waves, and enhanced bass clarity.
• Premium Finishes: Available in Piano Black, Midnight Cherry (high-gloss), and Satin Walnut, Black Walnut (smooth satin finishes) for a premium, visually appealing look.
• App Control: Easily adjustable settings via smartphone app, including room correction through Anthem Room Correction (ARC®) for optimal sound performance.

Performance:

• Frequency Response (On-Axis): ±3dB from 17 Hz to 140 Hz, ensuring full-range bass with deep, controlled output.
• Low Frequency Response: 12 Hz (DIN), providing deep bass extension to fill the room with immersive sound.
• Amplifier: Built-in Class-D amplifier for efficient power delivery and compact size.
• Effective Piston Area (SD): 93.7 sq in (0.06 sq m) for powerful bass displacement.
• Low Frequency Driver: 2” high-temperature voice coil ensures thermal stability and long-lasting performance.

SPL and Amplification:

• Amplifier Power: Power measurements underway to ensure compliance with new FTC regulations.

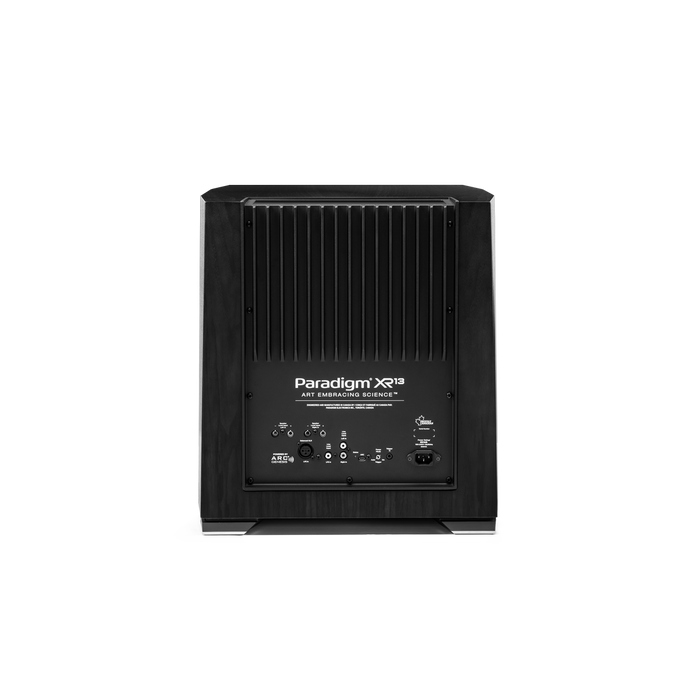

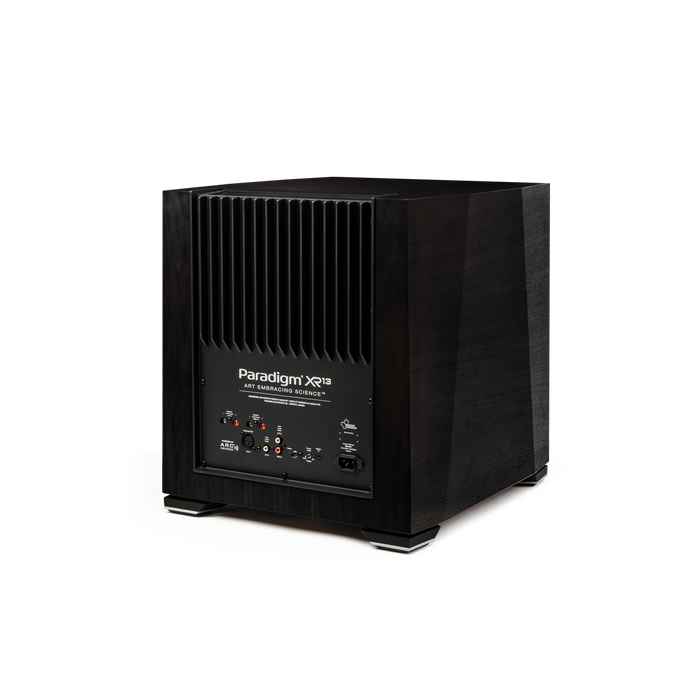

• Input Options:
  • Unbalanced: Stereo or Mono (dual RCA jacks), LFE RCA jack
  • Balanced: One Balanced XLR (LFE)
  • Speaker/High-Level: Left and right speaker level inputs
• Polarity: Adjustable (0 or 180 degrees) to ensure proper integration with your audio system.
• Phase: Variable 0°-180° phase control for optimized bass integration with your speakers.

Dimensions and Installation:

• Dimensions (HxWxD): 18.8” x 17.3” x 19.4” (47.8 cm x 43.8 cm x 49.3 cm), a compact size that fits effortlessly into most rooms.
• Weight: 103.8 lb (47.1 kg), providing a solid, stable base for maximum performance.

Finishes:
The XR 13 is available in a range of high-quality finishes to suit your home décor, including Piano Black, Midnight Cherry (high-gloss finishes), and Satin Walnut, Black Walnut (smooth satin finishes). Each finish is designed to complement the aesthetics of your living space while offering durability and visual appeal.
