SVS Prime Elevation

Prime Elevation by SVS

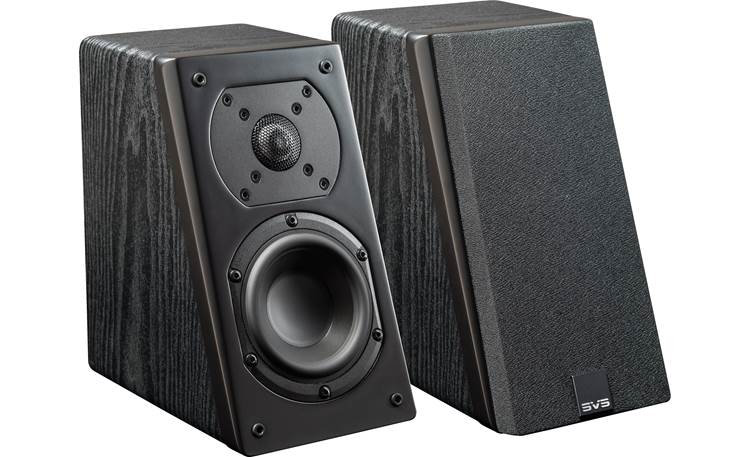

Overview: The SVS Prime Elevation is a cutting-edge, multi-functional home theater speaker designed to offer exceptional Dolby Atmos® and DTS® height effects. With its unique mounting bracket system, it can be easily placed in any position—whether wall or ceiling—to provide surround, LCR, height, or other speaker configurations for a truly immersive audio experience.

Purpose: Ideal for home theater enthusiasts seeking a versatile, high-performance speaker that delivers top-tier surround sound formats. The Prime Elevation excels in playing height effects, creating an enveloping dome of sound that elevates movie, TV, music, and gaming audio. Its design is optimized for flexibility, allowing it to function as front, center, side surround, rear surround, or LCR speaker, even in tight or unconventional room setups.

Design: The speaker is engineered with an advanced FEA-optimized 1” aluminum dome tweeter and a 4.5” polypropylene cone midrange driver, ensuring superb sound clarity and transient response. The versatile design allows for seamless integration into any room with a selection of finishes—Black Ash, Piano Gloss Black, and Piano Gloss White. The innovative mounting bracket system offers four mounting positions, making it easy to position the speaker for ideal sound performance in various environments.

Key Features:

• Full-Range Sound Radiation: Optimized to directly radiate sound without reliance on ceiling bounce, providing clear height effects.
• Driver Configuration:
  • 1” Aluminum Dome Tweeter: For airy, detailed highs and enhanced transient response.
  • 4.5” Midrange Driver: Features a polypropylene cone for superior stiffness and mass ratio, ensuring precise sound reproduction.

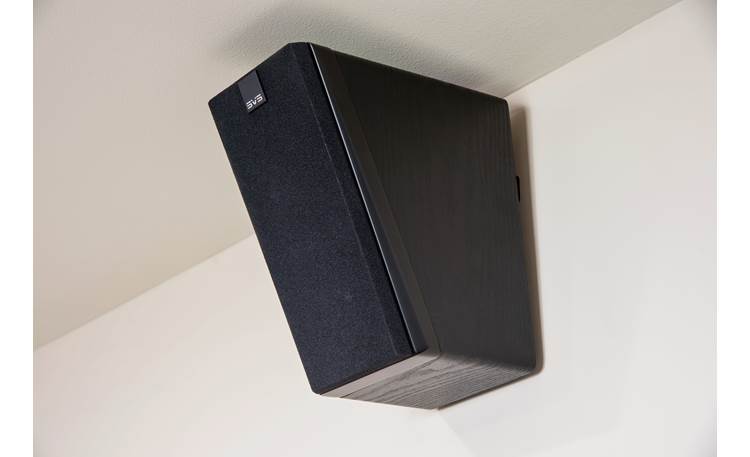

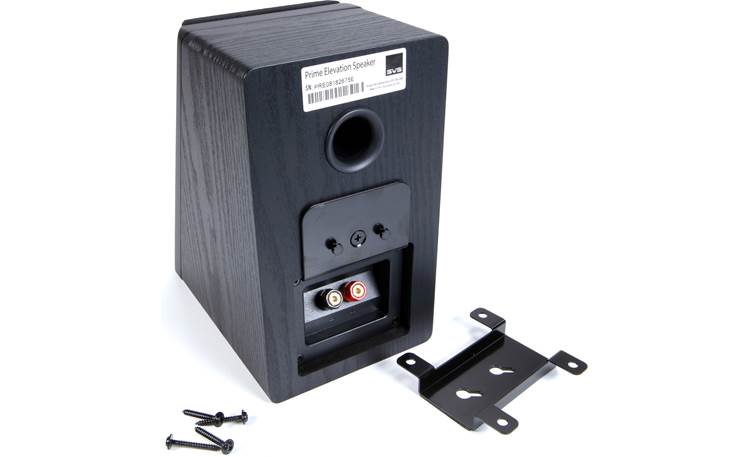

• Mounting Versatility: Includes the SVS Multi-Angle Wall Bracket for mounting in any of four positions, with a 1/4" brass insert for added flexibility.
• Finish Options: Available in Black Ash, Piano Gloss Black, and Piano Gloss White to match various décor styles.

Performance:

• Frequency Response: 55 Hz to 25 kHz (±3 dB), delivering a wide bandwidth of sound with clarity across frequencies.
• Impedance: 8 ohms, ensuring compatibility with most amplifiers.
• Sensitivity: 87 dB (2.83V @ 1 meter), offering efficient sound output at lower power levels.
• Recommended Amplifier Power: 20W to 150W, providing flexibility for both compact and high-powered systems.

Dimensions and Installation:

• Cabinet Dimensions: 9.25” (H) x 5.44” (W) x 7.88” (D).
• Overall Dimensions: 9.4” (H) x 5.44” (W) x 8.33” (D) (with grille, binding posts, and bumper feet).
• Shipped Dimensions: 9.30” (H) x 12” (W) x 18” (D).
• Weight: 7.8 pounds unboxed, 20 pounds shipped, ensuring solid construction and easy handling.

Finishes and Accessories:

• Includes a cloth grille with a retention system and a magnetic SVS logo for customizable aesthetic appeal.
• Elastomer stick-on bumper feet for easy setup and sound optimization.

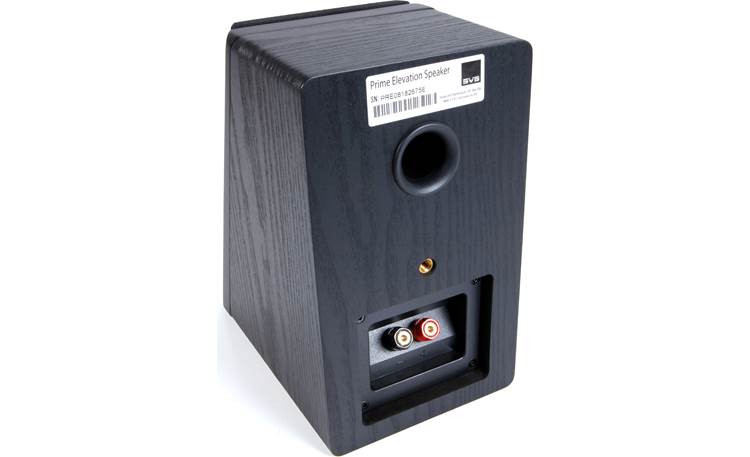

• Equipped with a 1” wide-flared rear-firing port for improved bass response.
