SVS Ultra Evolution Center

Ultra Evolution Center by SVS

The Ultra Evolution Center by SVS is a reference-class center speaker designed to deliver unmatched clarity and dynamic performance with a wide, immersive sweet spot. Ideal for high-end home theater systems, this speaker offers excellent phase coherence, ensuring sound reaches your ears simultaneously from each driver, creating a seamless and accurate soundstage.

Key Features

• Curved Front Baffle: Aligns the sonic emanation point of the tweeter and mid-range drivers on a vertical plane, ensuring precise timing for immersive sound.
• Vapor Deposition Diamond-Coated Tweeter: A diamond carbon layer applied to the aluminum dome tweeter improves rigidity and acoustic properties, extending high frequencies beyond human hearing and reducing distortion.
• Organic Cell Lattice Diffuser: Semi-random pattern derived from organic cell structures improves off-axis response and expands the "sweet spot" for broader listening coverage.
• Phase Coherence: Maximizes phase coherence to create more convincing imaging and a detailed, expansive soundstage.

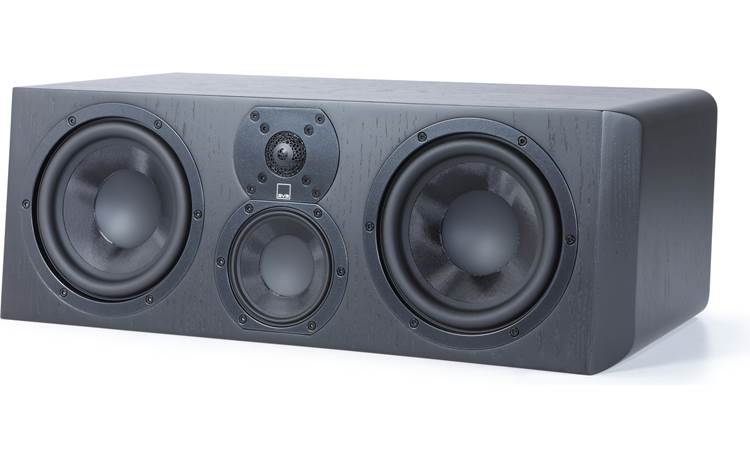

Driver Technology

• 1” Diamond Coated Tweeter:
  • Cutting-edge vapor-deposition technology applies a hyper-rigid diamond-like coating to the aluminum dome, ensuring exceptional high-frequency extension and minimal distortion.
  • FEA-optimized Organic Cell Lattice diffuser for improved clarity and smooth high frequencies.
• 4.5” Midrange Driver:
  • Composite glass-fiber cone for excellent stiffness-to-mass ratio, ensuring high sensitivity and pistonic motion for accuracy.
  • Lightweight Kapton voice coil former for dynamic, transient response.
• Dual 6.5” Woofers:
  • Long-stroke motor design for high output and low distortion.
  • Composite glass-fiber cone with a precise aluminum-alloy basket for thermal dissipation and accurate alignment.

Performance Specifications

• Frequency Response: 40 Hz – 40 kHz (+/- 3 dB)
• Nominal Impedance: 6 ohms
• Sensitivity: 87 dB (2.83V @ 1 meter, 300Hz – 3kHz)
• Recommended Amplifier Power: 20 – 225 watts

Speaker Dimensions & Weight

• Cabinet Dimensions: 7.68” (H) x 22.05” (W) x 11.39” (D)
• Overall Dimensions (with grille, feet, and binding posts): 7.83” (H) x 22.05” (W) x 11.78” (D)
• Shipped Dimensions: 12.0” (H) x 25.8” (W) x 16.3” (D)
• Weight (Unboxed): 26.8 lbs / 12.2 kg
• Shipped Weight: 30.9 lbs / 13.6 kg

Design & Finish Options

• Available in Piano Gloss Black, Piano Gloss White, and Real Black Oak Veneer finishes.

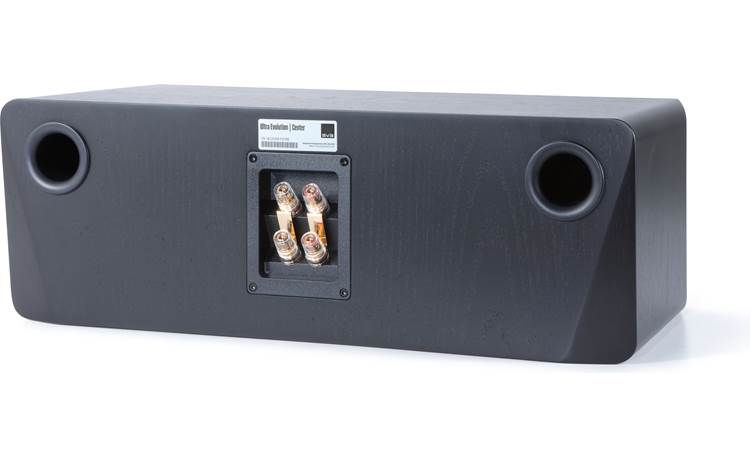

• Dual 1.6” wide-flared rear-firing ports for optimal bass output.
• Gold-plated 5-way binding posts for secure connections and optimal signal transfer.

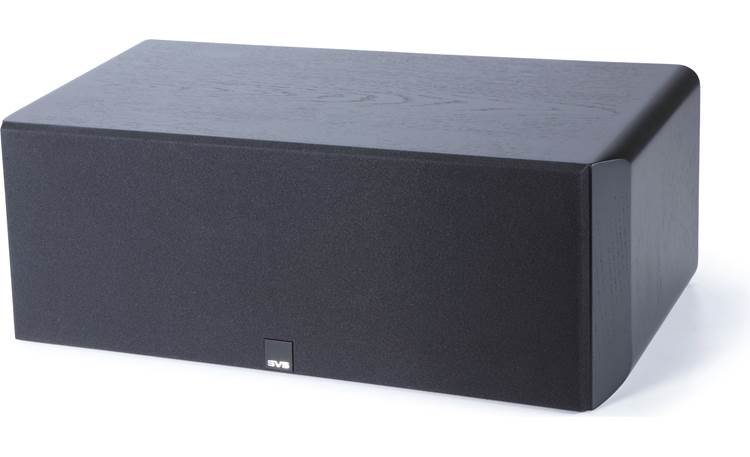

• Magnetic cloth grille for easy installation and removal.

Additional Features

• Elastomer Stick-On Bumper Feet: For secure placement on shelves or stands, ensuring the speaker stays stable.
• Shipping Dimensions: Compactly packaged for easy transport.
